P1020801
"18" hand-written on rear panel under hinge.
P1020802
P1020803
The 3 parts of the letter display, which is mounted to the inner lid and fits over the 26 light bulbs. Note the missing paint in the center of many letters.
P1020805
P1020806

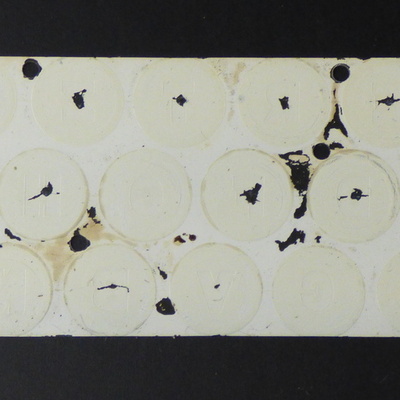

The rear of the letter stencil shows the missing paint much more clearly. This is where the tall light bulbs melted away the paint.
P1020807
P1020808

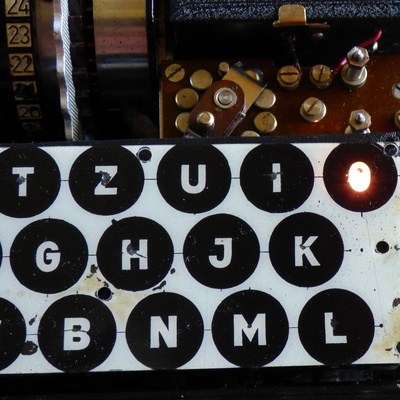

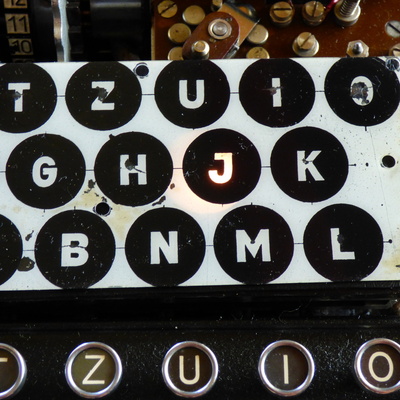

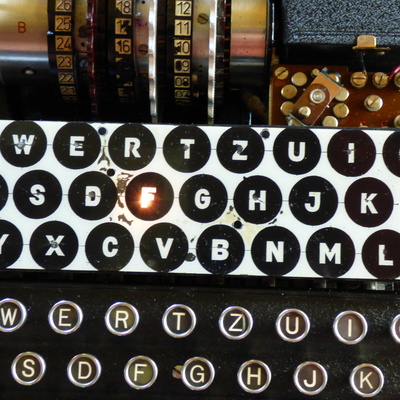

The letters don't look bad, but when the bulb is lighted, the missing paint makes the letter less readable and the light is almost blindingly bright.
P1020809
P1020810

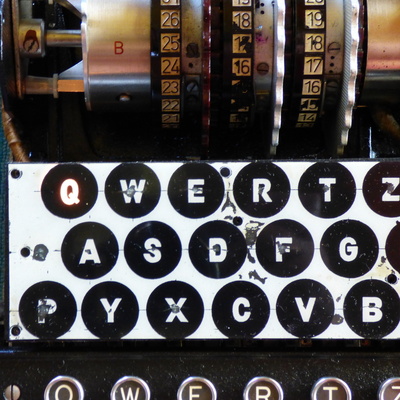

"Q" is one of the few letters in good condition.
P1020811

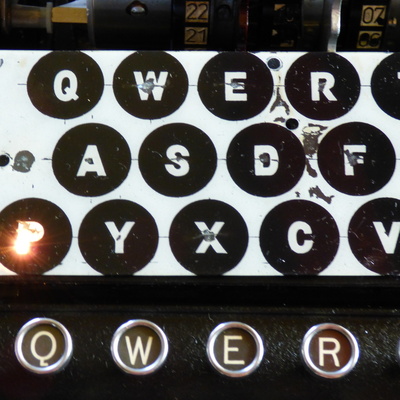

P1020813
P1020814
P1020815
P1020816
P1020817
P1020818
P1020821

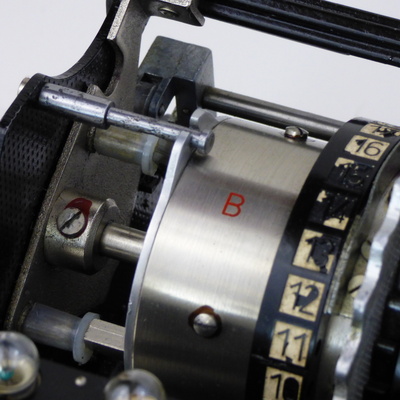

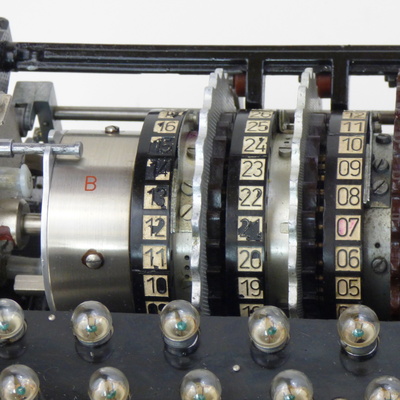

The reflector guide pin is now installed (the end is just above and to the left of the red "B" on the reflector). The two nylon bushings can be seen on each side of the reflector spindle. These bushings are temporary replacements for the metal caps, which are missing. As the reflector lever is rotated downward, these bushings push the reflector into the rotors, via the two ramps on the back of the reflector,
P1020822
P1020823
P1020828

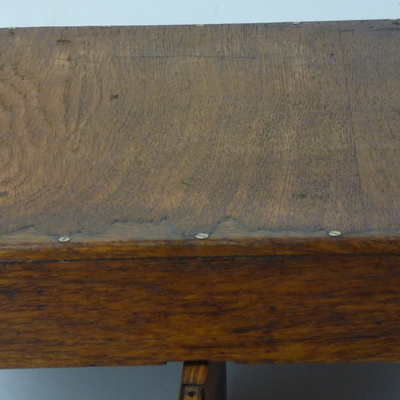

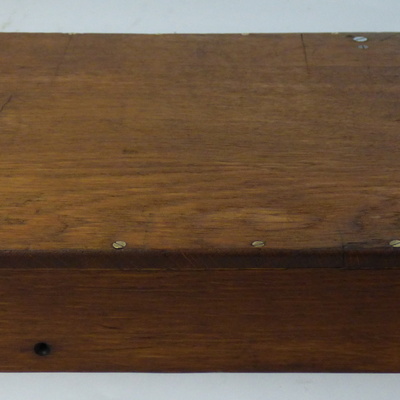

Two coats of linseed oil was applied and then 8 coats of Formsby's Tung Oil.
P1020829

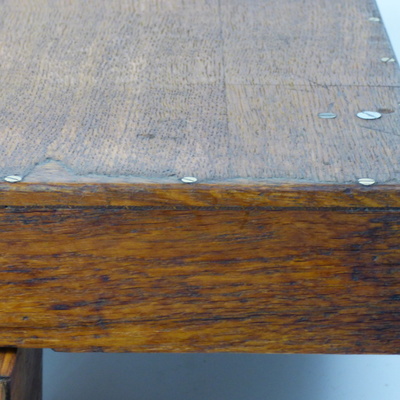

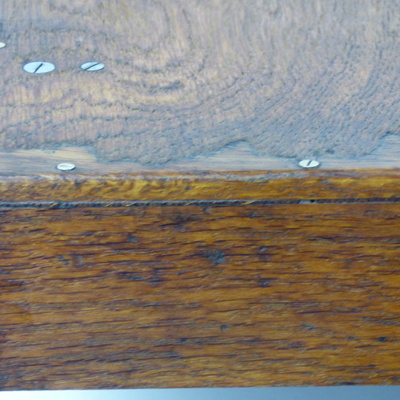

Close up view of missing laminate and re-glued finger joint after restoration.
P1020831
P1020832
P1020833
