P1020835
P1020836
P1020837
P1020838
P1020839
P1020840
P1020841
P1020842
P1020891

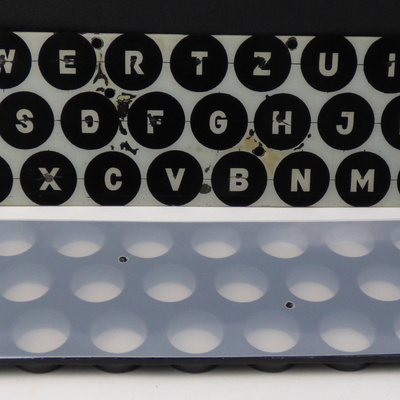

To reduce the blinding glare from the missing white paint in the center of most letters, a semi-transparent plastic stencil was added. It was cut to the same size as the original letter stencil and holes were added by applying the tip of a hot soldering iron into each screw hole.
P1020892
P1020950
P1020952
The letter shade was corrosive, as evidenced by the dark blue test strip, which turned yellowish-green after one week in a zip-lock bag with the shade.
P1020953 - Copy

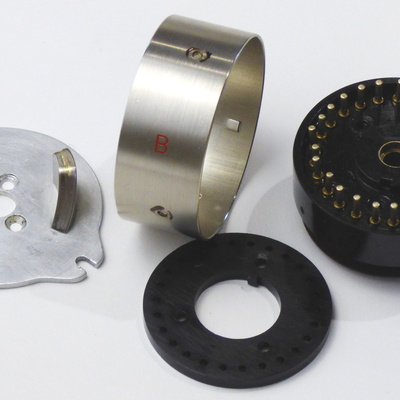

Note the scoring on the two ramps, due to the missing metal caps used to push against these ramps. The nylon bushings will temporarily replace these caps and eliminate any further damage to the ramps.
P1020956

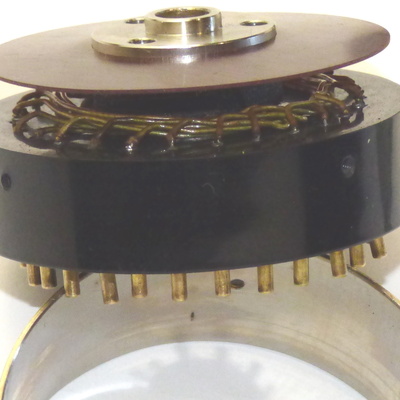

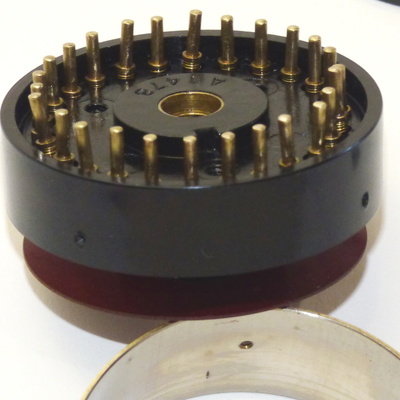

The reflector contacts had very weak springs. This caused intermittent failures, when a specific letter pair was used. I removed each contact and spring, cleaning them thoroughly and expanding the springs slightly to restore their "springiness".
P1020958
P1020960
P1020961
P1020962
P1020963
P1020964
P1020965
P1020966
P1020968
P1020969
